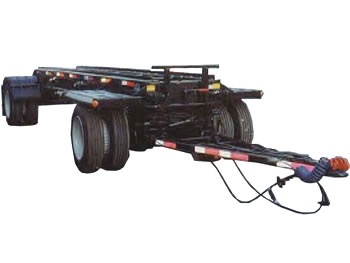

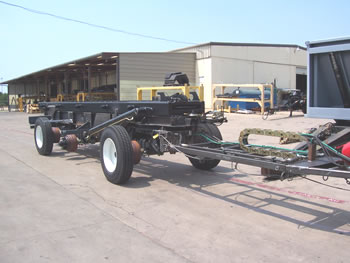

1700 Pup Wagon
  1700 Pup Wagon

Back to Product Line

Features Top
 ABS Brakes on Front & Rear Axles
 Hub Piloted Budd Wheels
 D.O.T. Lighting
 Front Dolly Lock
 Ratchet & Spring Assisted Tongue Lift
 Ratchet Tie Downs
 Spring Suspension
 25,000 lb Axles with High Beam Rails
 255/70R22.5 Low Profile Tires
 Poly Fenders
 Safety Cables
 ISO 18/15/13 Oil Cleanliness Standard
 Conspicuity Tape
Options Top
 Air Lift Axles
 Air Powered Dolly Lock Out
 Extra Spring Axle with Wheels
 Extra Spring Axle without Wheels
 Third Axle Poly Fender
Specifications Top
  1700 Pup Wagon
Specification Name Specification Detail
Overall Length 395 in. - 33 ft.
Trailer Length 277.5 in. - 23 ft. 1.75 in.
Maximum Box Length 264 in. - 22 ft.
Tongue Length 121.75 in. - 10 ft. 1.75 in.
Weight Approximately 7,500 lbs.
GVWR 40,000 lbs.
Ride Height Approximately 50 in.
Load Height Approximately 45 11/16 in.
Rail Dimension Inside 34.5 in. Outside 35.5 in.
Front Stop Tubing 7 7/8 in. tall
Frame Construction 13 in. Beam (HI-TEN Web)
Fifth Wheel Plate 3/8 in. Reinforced
Dolly Frame Rectangular Tubing 6 in. X 3 in. X .25 in.
ICC Bumper Rigid
Suspension Optional Air Ride Air Lift with Dump Valve, 25,000 lb. capacity
Axles 5 in. Round, 25,000 lb. capacity
Tires 255/70R22.5
Brakes 16.5 in. X 7 in. Air
Kingpin 2 in.
Fifth Wheel Fixed
Safety Cables Two 1/2 in. X 140 in. with Safety Hook
Lights ICC Approved, Seal Beam Type with Mid-Turn
Electrical Connection 7 Way Plug
Dolly Lock Tapered Pin Easy Release
Tongue Lift Spring Supported
Ratchet Tie Down Front Two with Chain; Rear One with Chain; Each Side - Two with Strap
Brochure Top
Download 1700 Pup Wagon Brochure
  G&H Brochures require Adobe Acrobat Reader Download here
Manual Top
Download 1700 Pup Wagon Manual
  G&H Brochures require Adobe Acrobat Reader Download here
Daily Driver Vehicle Inspection Report
Preventative Maintenance Inspection Form
