1630 Roll Off Hoist Trailer


Features
Options
Specifications
Brochure
Manual

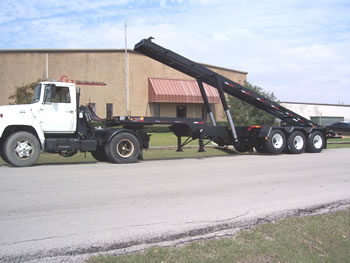

  1630 Roll Off Hoist Trailer




Back to Product Line



Features Top


 ABS Brakes
 Auto Slack Adjuster
 Mid-Turn Signals
 Automatic Front Container Latch
 Safety Prop
 Single Point Suspension
 7" Lifting and Reeving Cylinders
 Hub Piloted Budd Wheels
 Poly Fenders
 ICC Bumper
 Ratchet Tie Downs
 D.O.T. Lighting
 Conspicuity Tape
 Landing Gear with two speed Hand Crank
 11R22.5 Tires
 ISO 18/15/13 Oil Cleanliness Standard


Options Top

 Air Lift Axles
 Aluminum Fenders
 Dead Lift
 Extendable Tail
 Inside/Outside Rails with Inside Rollers
 Inside/Outside Rails without Rollers
 Quick Change Tail Roller
 Steel Tread Plate Fenders
 Tool Box - Aluminum
 Tool Box - Poly
 Tool Box - Steel
 Wheels - Aluminum Machined
 Wheels - Polished


Specifications Top
  1630 Roll Off Hoist Trailer


Specification Name Specification Detail
Cylinders, Reeving 7 in. Bore-Single Stage, Double Acting
Cylinders, Tilt 7 in. Bore-Three Stage, Double Acting
Front Fenders 1/8 in. Steel Tread Plate
Rear Fenders Poly Fenders interchangeable and replaceable
Tilt Frame Rails 10 in. X 4 in. X 1/2 in. Wall
Trailer Main Frame 16 in. 40 lb. Wide Flange I Beam
Capacity 75,000 lbs.
Controls Air Over Hydraulic
Container Length Varies
Maximum Tilt Angle 50 Degrees
Hoist Unit Weight Varies with Model
Tilt Frame Container Rollers 12
Cable Diameter 7/8 in.
Heavy Duty Landing Gear Two Speed
Suspension Single Point
Air Brakes ABS Brakes
Lights Meets all ICC and DOT Requirements
Tie Downs Ratchet Tie Downs
Wheels Hub Piloted Budd or Spoke
Tires 11R22.5 Tubeless
Rollers All equipped with Aluminum Bronze Bushings and Grease Fittings
Folding Rear Bumper Meets ICC Requirements
Rear Hinge Heavy Duty Rear Hinge
Color Black


Brochure Top

Download 1630 Roll Off Hoist Trailer Brochure
  G&H Brochures require Adobe Acrobat Reader Download here


Manual Top

Download 1630 Roll Off Hoist Trailer Manual
  G&H Brochures require Adobe Acrobat Reader Download here

Daily Driver Vehicle Inspection Report
Preventative Maintenance Inspection Form
  The documents above require Microsoft Excel
