1500 Roll Off Hoist 75,000 lb Capacity

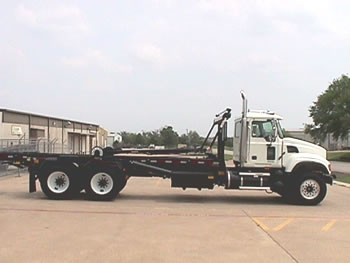

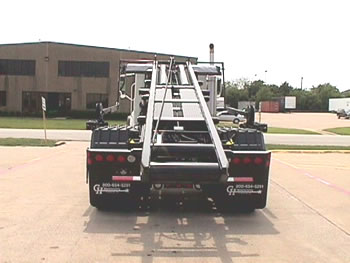

  1500 Roll Off Hoist

Back to Product Line

Features Top
 Tuff Kote Hoses
 Steel Tubing
 40 Gallon Side Mount Hydraulic Tank
 Oil System Filter within ISO 18/15/13 Sp
 Grease Fitting on all Wear Points
 Air Shift PTO with Direct Mount Pump
 Probilizer Port
 Filter Restriction Gauge
 Automatic Front Container Latch, Safety
 ICC Bumper
 Ratchet Tie Downs
 Conspicuity Tape
 Hoist Up Alarm
 Poly Fenders
 D.O.T. Lighting
 Quick Change Rear Roller
 Sheaves with Aluminum Bronze Bushings
 Side Rollers with Aluminum Bronze Bushin
 Rails: 10"x1/2" Steel Tubing
Options Top
 Air Controls - Dual Levers
 Air Controls - Joystick
 Automatic Tarper
 Behind Cab Hydraulic Tank
 Dead Lift
 Extendable Tail
 Fenders - Aluminum
 Fenders - Steel
 Fire Extinguisher Rack
 Front Mount Pump
 Inside/Outside Rails with Rollers
 Inside/Outside Rails without Rollers
 LED Lights
 Longer Hoist (24' Hoist)
 Pintle Hook with Hydraulics
 Pintle Hook without Hydraulics
 Power Beyond
 Pusher Axle
 Rear Stabilizer Roller
 Tool Box - Aluminum
 Tool Box - Poly
 Tool Box - Steel
 Wetline Kit
 Window Protector
Specifications Top
  1500 Roll Off Hoist
Specification Name Specification Detail
Cylinders Interchangeable lift and reeving cylinders 7 in. bore X 79 in. stroke single stage
Fenders Poly replaceable and interchangeable
Air Shift PTO With direct mounted pump
Hydraulic Tank 40 gallon capacity, side mounted steel
Frame 10 in. X 4 in. X 1/2 in rectangular tubing
Lights Enclosed sealed beam lights mounted in rubber
Controls Cable inside and outside of cab
Outside Rollers 4 in. O.D. X 3 3/4 in. long with Aluminum Bronze Bushings
Sheaves 10 in. Diameter with Aluminum Bronze Bushings for longer life
Rear Hinge Heavy-Duty Steel with 32 in. pin surface
Grease Fittings At all wear points
Lift Capacity 75,000 lbs.
Dump Angle Approximately 50 degrees
Operating Pressure 1900 PSI
Pump 66 GPM at 1500 RPM
Valve Multiple Stack - 4 Way Sections
Filter 100 GPM in-tank return line
Cycle Times 39 Seconds
Rear Hold Down Ratchet Tie Downs
Wear Strips 1/2 in. X 3 in. bar
Brochure Top
Download 1500 Roll Off Hoist 75,000 lb Capacity Brochure
  G&H Brochures require Adobe Acrobat Reader Download here
Manual Top
Download 1500 Roll Off Hoist 75,000 lb Capacity Manual
  G&H Brochures require Adobe Acrobat Reader Download here
Daily Driver Vehicle Inspection Report
Preventative Maintenance Inspection Form
  The documents above require Microsoft Excel
