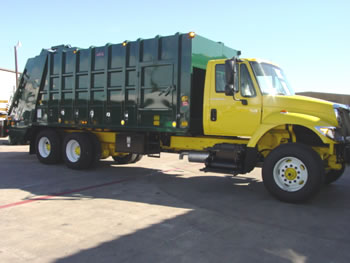

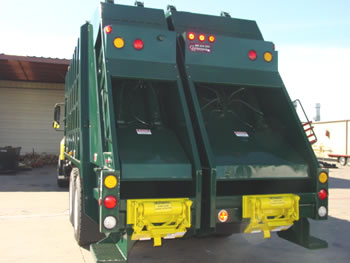

R 9030 2 Split Body Rear Loader
Features
Options
Specifications
Brochure
Manual
Back to Product Line
Features
Top
Controls - Lever Curb Side Only
Flood (2) Hopper Lights
Hot Shift PTO for Automatic Transmission
Hydraulic Tailgate Latches
Mid-Turn Signals
Safety Props
Steps (2) Bolt On
Std. 2 Part Paint - Epoxy/Polyurethane
Steet/Curb Side Doors w/Safety Swtch.
Tailgate Light Indicator
Oil System Filter
LED Lights with Smart Lights
Options
Top
Cart Tippers
Curb/Street Controls - Electric
Curb/Street Controls - Manual
Electrical Set of Controls
Front Mount Pump
Rear Camera
Reeving Cylinder Winch
Rust Proofing
Special Paint
Tailgate Clear Indicator (Push Button)
Three Tailgates
Tool Box
Variable Splits
Specifications
Top
Specification Name
Specification Detail
Capacity
30 cu. yds.
Overall Length
297 in.
Body Length
228 in.
Body Width
96 in.
Body Height
97 in.
Unit Weight
19,500 lbs.
C.T. "Clear"
178 in.
Front Axle
20,000 lbs.
Tandem
44,000
Packer Cylinder
Two 4.5 in. Packer Cylinders per Tailgate
Carriage Cylinder
Two 5 in. Carriage Cylinders per Tailgate
Tailgate Lift Cylinder
Two 4 in. Tailgate Lift Cylinders per Tailgate
Ejector Cylinder
One 5 in. Ejector Cylinder per Side
Body Sidewalls
10 GA.
Body Floor
T1 7GA.
Body Roof
10 GA.
Ejector Panel
10 GA.
Hopper Sidewalls
7 GA.
Hopper Floor
T1 1/4in.
Sweep Panel
10 GA.
Moving Panel
1/2 in.
Pump GPM/RPM
38 at 1500
System Pressure
2000 PSI
Cycle Time
23 to 26 Seconds
Filter - Return Line
10 Micron
Oil Reservoir Capacity
50 Gallon
Front Mount Pump PTO
13 Seconds
Loading Height
42 in.
Brochure
Top
Download R 9030 2 Split Body Rear Loader Brochure
G&H Brochures require Adobe Acrobat Reader
Download here
Manual
Top
Download R 9030 2 Split Body Rear Loader Manual
G&H Brochures require Adobe Acrobat Reader
Download here
Daily Driver Vehicle Inspection Report
Preventative Maintenance Inspection Form
The documents above require Microsoft Excel
