R 9025 3 Split Body Rear Loader


Features
Options
Specifications
Brochure
Manual

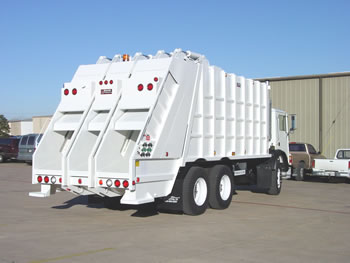

  R 9025 3 Split Body Rear Loader




Back to Product Line



Features Top


 Controls - Lever Curb Side Only
 Flood (2) Hopper Lights
 Hot Shift PTO for Automatic Transmission
 Hydraulic Tailgate Latches
 Mid-Turn Signals
 Safety Props
 Steps (2) Bolt On
 Std. 2 Part Paint - Epoxy/Polyurethane
 Steet/Curb Side Doors w/Safety Swtch.
 Tailgate Light Indicator
 Oil System Filter
 LED Lights with Smart Lights


Options Top

 Cart Tippers
 Curb/Street Controls - Electric
 Curb/Street Controls - Manual
 Electrical Set of Controls
 Front Mount Pump
 Rear Camera
 Reeving Cylinder Winch
 Rust Proofing
 Special Paint
 Tailgate Clear Indicator (Push Button)
 Three Tailgates
 Tool Box
 Variable Splits


Specifications Top
  R 9025 3 Split Body Rear Loader


Specification Name Specification Detail
Capacity 25 cu. yds.
Overall Length 261 in.
Body Length 212 in.
Body Width 96 in.
Body Height 97 in.
Unit Weight 17,500 lbs.
C.T. "Clear" 160 in.
Front Axle 14,000 lbs.
Tandem 40,000
Packer Cylinder Two 4.5 in. Packer Cylinders per Tailgate
Carriage Cylinder Two 5 in. Carriage Cylinders per Tailgate
Tailgate Lift Cylinder Two 4 in. Tailgate Lift Cylinders per Tailgate
Ejector Cylinder One 5 in. Ejector Cylinder per Side
Body Sidewalls 10 GA.
Body Floor T1 7GA.
Body Roof 10 GA.
Ejector Panel 10 GA.
Hopper Sidewalls 7 GA.
Hopper Floor T1 1/4in.
Sweep Panel 10 GA.
Moving Panel 1/2 in.
Pump GPM/RPM 38 at 1500
System Pressure 2000 PSI
Cycle Time 23 to 26 Seconds
Filter - Return Line 10 Micron
Oil Reservoir Capacity 50 Gallon
Front Mount Pump PTO 13 Seconds
Loading Height 42 in.


Brochure Top

Download R 9025 3 Split Body Rear Loader Brochure
  G&H Brochures require Adobe Acrobat Reader Download here


Manual Top

Download R 9025 3 Split Body Rear Loader Manual
  G&H Brochures require Adobe Acrobat Reader Download here

Daily Driver Vehicle Inspection Report
Preventative Maintenance Inspection Form
  The documents above require Microsoft Excel
