8550 Container Trailer 5 Bay


Features
Options
Specifications
Brochure
Manual

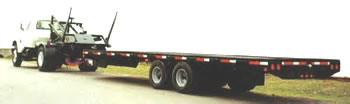

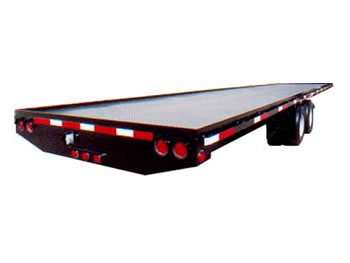

  8550 Container Trailer 5 Bay




Back to Product Line



Features Top


 Drop Leg
 Ratchet Tie Downs
 20,000 lb Suspension
 Two Axles (10,000 lbs. per Axle)
 Sealed Beam Lights mounted in rubber and


Options Top

 Retaining Rail
 Stake Pockets
 Floor - Tread Plate
 Floor - Smooth Steel
 Goose Neck on Trailer
 Sliding Rail for Ratchet Tie Downs
 Air Brakes (ABS single or tandem axle)
 Elec. Brakes (ABS single or tandem axle)


Specifications Top
  8550 Container Trailer 5 Bay


Specification Name Specification Detail
Cylinders 20,000 lbs
Number of Bays 5
Length A 524 in. (43 ft. 8 in.)
Height B 37 in.
Empty Weight 3,800 lbs.
Main Frame Member 12 in. Wide Flange
Drop Leg Meets ICC Requirements
Axles Two with a 10,000 lb. Capacity Each
Suspension 20,000 lb. Capacity, Tandem, 10 Leaf Slipper Spring
Tongue 8 in. X 3 in. Rectangular Tubing
Ratchet Tie Downs 3 in. Ratchet Tie Down with 3 in. X 30 ft. Nylon Strap per Bay
Lights Sealed Beam Lights are mounted in rubber and enclosed in Steel Light Box (Meets DOT Requirements)
Mud Flaps Rubber
Hitch 22,000 lb. Capacity Draw Bar
Brake Options Electric or Air
Outer Frames 4 in. Channel
Optional Solid Deck Smooth Steel or Tread Plate


Brochure Top

Download 8550 Container Trailer 5 Bay Brochure
  G&H Brochures require Adobe Acrobat Reader Download here


Manual Top

Download 8550 Container Trailer 5 Bay Manual


Manual Currently Unavailable

  G&H Brochures require Adobe Acrobat Reader Download here

Daily Driver Vehicle Inspection Report
Preventative Maintenance Inspection Form
  The documents above require Microsoft Excel
